An interface for classes that represent co-simulation slaves. More...

#include <cosim/slave.hpp>

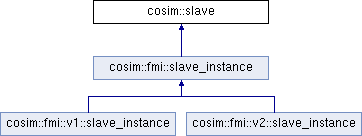

Inheritance diagram for cosim::slave:

Public Member Functions
virtual cosim::model_description	model_description () const =0
	Returns a model description. More...

virtual void	setup (time_point startTime, std::optional< time_point > stopTime, std::optional< double > relativeTolerance)=0
	Instructs the slave to perform pre-simulation setup and enter initialisation mode. More...

virtual void	start_simulation ()=0
	Informs the slave that the initialisation stage ends and the simulation begins. More...

virtual void	end_simulation ()=0
	Informs the slave that the simulation run has ended. More...

virtual step_result	do_step (time_point currentT, duration deltaT)=0
	Performs model calculations for the time step which starts at the time point `currentT` and has a duration of `deltaT`. More...

virtual void	get_real_variables (gsl::span< const value_reference > variables, gsl::span< double > values) const =0
	Retrieves the values of real variables. More...

virtual void	get_integer_variables (gsl::span< const value_reference > variables, gsl::span< int > values) const =0
	Retrieves the values of integer variables. More...

virtual void	get_boolean_variables (gsl::span< const value_reference > variables, gsl::span< bool > values) const =0
	Retrieves the values of boolean variables. More...

virtual void	get_string_variables (gsl::span< const value_reference > variables, gsl::span< std::string > values) const =0
	Retrieves the values of string variables. More...

virtual void	set_real_variables (gsl::span< const value_reference > variables, gsl::span< const double > values)=0
	Sets the values of real variables. More...

virtual void	set_integer_variables (gsl::span< const value_reference > variables, gsl::span< const int > values)=0
	Sets the values of integer variables. More...

virtual void	set_boolean_variables (gsl::span< const value_reference > variables, gsl::span< const bool > values)=0
	Sets the values of boolean variables. More...

virtual void	set_string_variables (gsl::span< const value_reference > variables, gsl::span< const std::string > values)=0
	Sets the values of string variables. More...

Detailed Description

An interface for classes that represent co-simulation slaves.

The function call sequence is as follows:

setup(): Configure the slave and enter initialisation mode.
set_<type>_variables(), get_<type>_variables(): Variable initialisation. The functions may be called multiple times in any order.
start_simulation(): End initialisation mode, start simulation.
do_step(), get_<type>_variables(), set_<type>_variables(): Simulation. The functions may be called multiple times, in this order.
end_simulation(): End simulation.

Any method may throw an exception. In almost all cases, the slave will be considered "broken" after this happens, and no further method calls will be made. The sole exception to this rule is that the set_<type>_variables() methods may throw nonfatal_bad_value to indicate that one or more variables were out of the allowed range, but that the slave has either ignored or accepted these values and is able to proceed.

Member Function Documentation

◆ do_step()

virtual step_result cosim::slave::do_step	(	time_point	currentT,
		duration	deltaT
	)

pure virtual

Performs model calculations for the time step which starts at the time point currentT and has a duration of deltaT.

If this is not the first time step, it can be assumed that the previous time step ended at currentT. It can also be assumed that currentT is greater than or equal to the start time, and currentT+deltaT is less than or equal to the stop time, specified in the setup() call.

Returns: Whether the step completed successfully or not. (Non-recoverable problems must be signaled with an exception.)

Note: Currently, retrying a failed time step is not supported, but this is planned for a future version.

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ end_simulation()

virtual void cosim::slave::end_simulation ( )

pure virtual

Informs the slave that the simulation run has ended.

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ get_boolean_variables()

virtual void cosim::slave::get_boolean_variables	(	gsl::span< const value_reference >	variables,
		gsl::span< bool >	values
	)		const

pure virtual

Retrieves the values of boolean variables.

On return, the values array will be filled with the values of the variables specified in variables, in the same order.

Precondition: variables.size() == values.size()

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ get_integer_variables()

virtual void cosim::slave::get_integer_variables	(	gsl::span< const value_reference >	variables,
		gsl::span< int >	values
	)		const

pure virtual

Retrieves the values of integer variables.

On return, the values array will be filled with the values of the variables specified in variables, in the same order.

Precondition: variables.size() == values.size()

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ get_real_variables()

virtual void cosim::slave::get_real_variables	(	gsl::span< const value_reference >	variables,
		gsl::span< double >	values
	)		const

pure virtual

Retrieves the values of real variables.

On return, the values array will be filled with the values of the variables specified in variables, in the same order.

Precondition: variables.size() == values.size()

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ get_string_variables()

virtual void cosim::slave::get_string_variables	(	gsl::span< const value_reference >	variables,
		gsl::span< std::string >	values
	)		const

pure virtual

Retrieves the values of string variables.

On return, the values array will be filled with the values of the variables specified in variables, in the same order.

Precondition: variables.size() == values.size()

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ model_description()

virtual cosim::model_description cosim::slave::model_description ( ) const

pure virtual

Returns a model description.

Implemented in cosim::fmi::slave_instance.

◆ set_boolean_variables()

virtual void cosim::slave::set_boolean_variables	(	gsl::span< const value_reference >	variables,
		gsl::span< const bool >	values
	)

pure virtual

Sets the values of boolean variables.

This will set the value of each variable specified in the variables array to the value given in the corresponding element of values.

The function may throw nonfatal_bad_value to indicate that one or more values were out of range or invalid, but that these values have been accepted or ignored so the simulation can proceed.

Precondition: variables.size() == values.size()

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ set_integer_variables()

virtual void cosim::slave::set_integer_variables	(	gsl::span< const value_reference >	variables,
		gsl::span< const int >	values
	)

pure virtual

Sets the values of integer variables.

This will set the value of each variable specified in the variables array to the value given in the corresponding element of values.

The function may throw nonfatal_bad_value to indicate that one or more values were out of range or invalid, but that these values have been accepted or ignored so the simulation can proceed.

Precondition: variables.size() == values.size()

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ set_real_variables()

virtual void cosim::slave::set_real_variables	(	gsl::span< const value_reference >	variables,
		gsl::span< const double >	values
	)

pure virtual

Sets the values of real variables.

This will set the value of each variable specified in the variables array to the value given in the corresponding element of values.

The function may throw nonfatal_bad_value to indicate that one or more values were out of range or invalid, but that these values have been accepted or ignored so the simulation can proceed.

Precondition: variables.size() == values.size()

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ set_string_variables()

virtual void cosim::slave::set_string_variables	(	gsl::span< const value_reference >	variables,
		gsl::span< const std::string >	values
	)

pure virtual

Sets the values of string variables.

This will set the value of each variable specified in the variables array to the value given in the corresponding element of values.

The function may throw nonfatal_bad_value to indicate that one or more values were out of range or invalid, but that these values have been accepted or ignored so the simulation can proceed.

Precondition: variables.size() == values.size()

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ setup()

virtual void cosim::slave::setup	(	time_point	startTime,
		std::optional< time_point >	stopTime,
		std::optional< double >	relativeTolerance
	)

pure virtual

Instructs the slave to perform pre-simulation setup and enter initialisation mode.

This function is called when the slave has been added to an execution. The arguments startTime and stopTime represent the time interval inside which the slave's model equations are required to be valid. (In other words, it is guaranteed that do_step() will never be called with a time point outside this interval.)

Parameters

[in]	startTime	The earliest possible time point for the simulation.
[in]	stopTime	The latest possible time point for the simulation. May be left unspecified if there is no defined stop time.
[in]	relativeTolerance	If specified, this contains the relative tolerance of the step size controller. The slave may then use this for error control in its internal integrator.

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

◆ start_simulation()

virtual void cosim::slave::start_simulation ( )

pure virtual

Informs the slave that the initialisation stage ends and the simulation begins.

Implemented in cosim::fmi::v1::slave_instance, and cosim::fmi::v2::slave_instance.

The documentation for this class was generated from the following file:

cosim/slave.hpp
